Does your application require high resolution information of vehicle
accelerations for several directions ?
Do you need precise information on both static and dynamic tilt
angles? If so - xProINS IP68 is the perfect solution for you !
xproINS IP68 comes with four different sensor types - each selected to
achieve the best possible results for individual physical values:
•
a main sensor with a 6D accelerometer / Gyro with high stability
•
a special Tilt Angle Sensor with stable results for static tilt angles
•
a backup 6D IMU with extended measurement ranges
•
a Magnetometer / Compass module for future software extensions
xproINS IP68 - add dynamic Data to CAN
xproINS IP68 comes in a full metal housing - milled from a block of Alloy.
The sensor unit can be securely mounted with two M4 screws which reduces the
influence of local vibration.
The sensor unit is completely waterproof and IP68 certified. The Signal
connector is also protected, of course.
As a special feature there is a built-in mounting angle compensation. If the
mounting angle of the sensor deviates from being perpendicular to the Earth‘s
gravitational field, this can be corrected by simply pressing a button on top of
the unit. Alternatively a calibration run can be automatically initiated at power-
on.
Communication is via CAN bus. The interface is CAN-FD ready.
The low-power design features full galvanic isolation and a wide input range of
10 … 32 VDC.
IP68 - waterproof and dust protected
xpro
©
INS IP68 - our Experience your Profit
matches with xpro hybrid Brake Test
xproINS IP68 - Inertial Sensor
Does your application require high resolution
information of vehicle accelerations for several
directions ?
Do you need precise information on both static and
dynamic tilt angles ?
If so - xProINS IP68 is the perfect sensor solution
for you !
xproINS IP68 comes with four different sensor
types - each selected to achieve the best possible
results for individual physical values:
•
a main sensor with a 6D accelerometer / Gyro -
selected for low drift
•
a special Tilt Angle Sensor module with stable
results for static tilt angles
•
a backup 6D IMU with extended measurement
ranges
•
a Magnetometer / Compass module for future
software extensions
xproINS IP68 comes in a full metal housing -
milled from a block of Alloy.
The sensor unit can be securely mounted with two
M4 screws which reduces the influence of local
vibration.
The sensor unit is completely waterproof and IP68
certified. The Signal connector is also protected, of
course.
As a special feature there is a built-in mounting
angle compensation. If the mounting angle of the
sensor deviates from being perpendicular to the
Earth‘s gravitational field, this can be corrected by
simply pressing a button on top of the unit.
Alternatively a calibration run can be automatically
initiated at power-on.
Communication is via CAN bus. The interface is
CAN-FD ready.
The low-power design features full galvanic
isolation and a wide input range of 10 … 32 VDC.

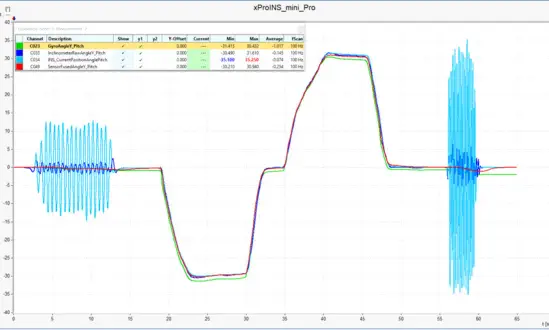

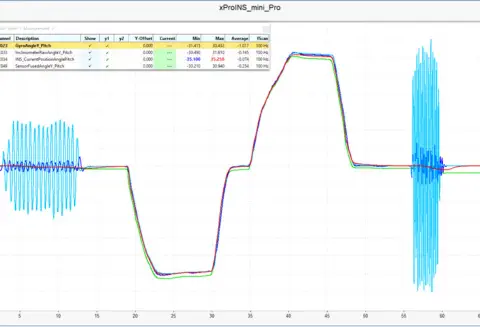

perfect Results by Multi-Sensor Array
xpro INS IP68 - designed for harsh Applications
innovative Sensor Concept
6D Precision-IMU + Tilt Sensor + Dynamic Angles
